DMX4ALL GmbH – DMX RDM & LED-Technik | ArtNet Player X4

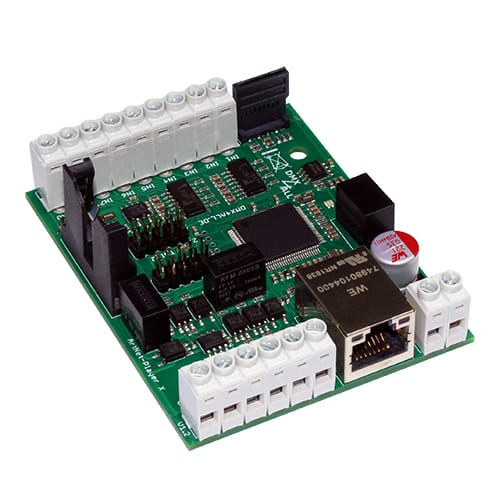

ArtNet Player X4 Art. Nr.: 90-4904
Eigenschaften
Einfache Konfiguration über Webbrowser Synchronisierung mehrerer Geräte Galvanisch getrennte DMX-Anschlüsse Ausgabe der Universen über Art-Net™ & DMX microSD Karte bis 16GB Konfigurierbare Timer Spielt DMX4ALL, TPM2 & TPM2NET Dateien Optional mit DCF77-Empfänger erweiterbar Abschaltbare LED-Anzeigen RGB-Filter Verschiedene Remote-Funktionen LongDistance-Eingänge Lautlos ohne Lüfter Firmware-Update-Funktion Technische Daten
Spannungsversorgung: 8-24V DC
(150mA@12V | 100mA@24V) Anschlüsse: RJ45 Ethernet
Schraubklemmen Ethernet: 10 Mbit/s | 100 Mbit/s Art-Net™: 4 Universen (bis zu 2048 Kanäle) DMX: 2x galvanisch getrennt
– 1x DMX-IN
– 1x DMX-OUT Device-Sync: Synchronisierung mehrere Geräte Timer: 4 konfigurierbare Timer zur Ausführung von Programmen Digital Eingänge: 8 konfigurierbare LongDistance-Eingänge SD-Karte: microSD bis zu 16GB Formate: DMX4ALL Programmdateien
TPM2 Dateien (z.B. Jinx)
TPM2NET Dateien (z.B. Jinx) Statusanzeige: RGB-LED, Netzwerk-Status-LEDs
alle abschaltbar Features: RGB-Filter
Firmware-Update-Funktion
Lautlos ohne Lüfter Optional: mit DCF77-Empfänger erweiterbar Remote-Optionen: DMX
Art-Net™
HTTP-Request
DMX4ALL Commands Abmessung: 62 x 88 x 29 mm
Der ArtNet Player X4, im Folgenden ArtNet Player X genannt, ist der erste Stand-Alone Controller aus dem Hause DMX4ALL, der in verschiedenen Modellausführungen angeboten wird.
Je nach gewünschtem Einsatzbereich ist der ArtNet Player X, in unterschiedlichen Ausführungen und Funktionsumfängen, erhältlich.
Wie gewohnt ist auch der ArtNet Player X in DMX4ALL Manier schnell einsatzbereit und bleib trotz zahlreicher und neuer Funktionen in der Handhabung intuitiv und bedienfreundlich.
Ermöglicht wird das durch die gut strukturierte Benutzeroberfläche des geräteeigenen Webinterfaces, welches für die Einstellungen zur Verfügung steht.
Einen Überblick über den aktuellen Status bietet die integrierte RGB-LED.
Ob als Platinenversion oder als kompaktes Fertiggerät mit komfortabler Touch-Bedienung, über den ArtNet Player X können Lichtprogramme von der SD-Karte wiedergegeben werden.
Dabei können verschiedene Dateiformate genutzt werden, die entweder mit dem DMX-Configurator erstellt oder als TPM2-Dateien aus frei verfügbarer Software verwendet werden können.
Mit bis zu 4 Universen können maximal bis zu 2048 Kanäle über das Netzwerk mit nur einem ArtNet Player X ausgegeben werden.
Selbst bei größeren Installationen bleibt Dank des Master-Slave-Betriebs die Handhabung über mehrere Geräte hinweg unkompliziert und übersichtlich.
Der ArtNet Player X bietet die Möglichkeit, Programme komfortable zeitgesteuert auszuführen.
Bis zu 4 konfigurierbare Timer können individuell definiert werden. Für jeden Timer kann ein oder können mehrere Tage sowie die Startzeit zugeordnet werden.
Darüber hinaus kann optional die Wiedergabedauer eingestellt werden.
Zur korrekten Ausführung der Timer ist die aktuelle Uhrzeit notwendig.
Diese Einstellung erfolgt entweder über das geräteeigene Web-Interface, den optional erhältlichen DCF77 Key mit DCF77 Sensor oder gemäß der ArtNet-Spezifikation über netzwerkbasierte ArtTimeSync Pakete.
DCF77 erlaubt eine automatische Anpassung an die Sommer / Winterzeit.
Die im ArtNet Player X integrierten, konfigurierbaren Digitaleingänge ermöglichen die Bedienung durch abgesetzte Taster, wodurch zusätzliche Geräte hinfällig werden.
Ausgelegt als LongDistance Eingang verursachen selbst größere Entfernungen bei der Montage der Schaltelemente keine Probleme.
Der ArtNet Player X überzeugt und vereint in seiner platzsparenden, kompakten Bauform eine Vielzahl von nützlichen und innovativen Funktionen unter einem Hutschienengehäuse.
Wiedergabe von bis zu 4 DMX Universen
Der ArtNet Player X kann bis zu 4 DMX Universen über Art-Net ausgeben.
Ausgabe per Art-Net
Die auszugebenden DMX Universen können per Art-Net ausgeben werden.
Synchronisierung mehrerer Geräte
Werden mehr DMX-Universen benötigt, können mehrere ArtNet Player X synchronisiert werden.
Zwei galvanisch getrennte DMX-Anschlüsse
Am ArtNet Player X befinden sich 2 galvanisch getrennte DMX-Anschlüsse, ein DMX-OUT und ein DMX-IN.
Remote-Funktion
Der ArtNet Player X verfügt über eine konfigurierbare Remote-Funktion.
Eine Remote-Ansteuerung ist per DMX, Art-Net, HTTP-Request oder DMX4ALL Commands möglich.
8 LongDistance Eingänge
Es stehen 8 konfigurierbare digitale Eingänge zum Anschluss von Tastern oder Schaltern zur Verfügung.
Die Eingänge sind als LongDistance-Eingänge ausgelegt, sodass die Schaltelemente auch in einer größeren Entfernung montiert werden können.
Abschaltbare LED-Anzeigen
Die LED-Anzeigen am ArtNet Player X sind per ArtNet-Command oder zeitgesteuert abschaltbar, zur Vermeidung störender „Lichtpunkte“ vor allem auf Bühne.
RGB-Filter
Eine schnelle und unkomplizierte Änderung der im Programm definierten Farbe erlaubt der RGB-Filter.
Die ausgewählten Farben können nach Bedarf gefiltert werden, ohne dass das zuvor erstellte Programm editiert werden muss.
Firmware-Update-Funktion
Die Firmware-Update-Funktion ermöglicht immer die Nutzung der kostenlosen, aktuellen Geräte-Software.
Verschiedene Dateiformate für die Lichtprogramme
Der ArtNet Player X gibt die Lichtprogramme von der SD-Karte wieder.
Als Wiedergabeformate können dabei sowohl die DMX4ALL Programmdateien als auch TPM2 oder TPM2NET verwendet werden.
Einfache Konfiguration
Eine benutzerfreundliche Konfiguration über einen beliebigen Webbrowser ermöglicht eine schnelle und unkomplizierte Einstellung aller Parameter.
So ist die Konfiguration jederzeit vom PC, Smartphone oder Tablet aus möglich.
Hutschienengehäuse verfügbar
Passend für den ArtNet Player X ist als Zubehör das Hutschienengehäuse 700 erhältlich.
Kostenlose Software
Für die Erstellung der wiederzugebenen Programme kann unsere kostenlose Software DMX-Configurator verwendet werden, die in der aktuellen FREE-Version als Download auf unserer Webseite www.dmx4all.de zur Verfügung steht.
